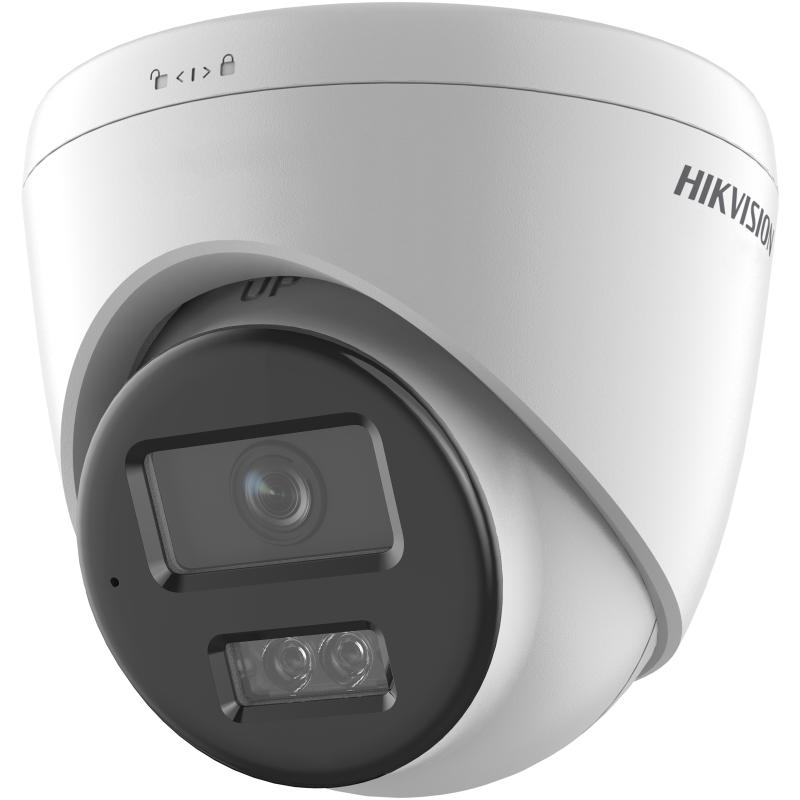

Hikvision DS-2CD1341G2-LIU 4MP Smart Hybrid Light Dome Network Camera

Camera

Image Sensor

1/2.8″ Progressive Scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

Color: 0.002 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Lens Type

Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 123°

4 mm, horizontal FOV 82°, vertical FOV 45°, diagonal FOV 98°

Lens Mount

M12

Iris Type

Fixed

Aperture

F2.0

Depth of Field

2.8 mm: 0.9 m to ∞

4 mm: 1.1 m to ∞

DORI

DORI

2.8 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m

4 mm, D: 67 m, O: 26 m, R: 13 m, I: 6 m

Illuminator

Supplement Light Type

IR, White Light

Supplement Light Range

Up to 40 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

50 Hz:

20 fps (2560 × 1440),

25 fps (1920 × 1080, 1280 × 720)

60 Hz:

20 fps (2560 × 1440),

24 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720，640 × 480, 640 × 360)

60 Hz: 24 fps (1280 × 720，640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR, VBR

Region of Interest (ROI)

1 fixed region for main stream

Audio

Audio Type

Mono sound

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz

Audio Compression

G.711ulaw/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)

Network

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS,

SNMP, DDNS

API

ONVIF (Profile S, Profile T, Profile G (only -F model supports Profile G)), ISAPI, SDK

Security

Password protection, complicated password, watermark, basic and digest

authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users

3 user levels: administrator, operator, and user

Client

iVMS-4200, Hik-Connect

Web Browser

Local service: Chrome 80+, Firefox 80+, Edge 89+, IE 11


Wide Dynamic Range (WDR)

Digital WDR

SNR

≥ 52 dB

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Settings

Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client

software or web browser

Privacy Mask

1 programmable polygon privacy mask

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

-F model: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up

to 512 GB

Built-in Microphone

Yes, 1 built-in microphone

Reset Key

-F model supports

Event

Basic Event

Motion detection (support alarm triggering by specified target type (human)),

exception

Linkage

Upload to memory card (-F model supports), send email, notify surveillance center,

trigger recording (-F model supports), trigger capture

General

Power

LIU(E) model:

12 VDC ± 25%, 0.42 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection,

PoE: IEEE 802.3af, Class 0, max. 6.5 W LIUF model:

12 VDC ± 25%, 0.42 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 6.5 W

Material

Metal & Plastic

Dimension

Ø110 mm × 89.2 mm (Ø4.3″ × 3.5″)

Package Dimension

150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)

Weight

Approx. 345 g (0.7 lb.)

With Package Weight

Approx. 588 g (1.2 lb.)

Storage Conditions

-30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)

Startup and Operating

Conditions

-30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)

Language

English, Ukrainian

General Function

Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

KC: KN32: 2015, KN35: 2015

Safety

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017

Environment

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013

Level

Description

Top-level protection

Hikvision products at this level are equipped for use in areas where professional anti-corrosion protection is a must. Typical application scenarios include coastlines,

docks, chemical plants, and more.

Moderate protection

Hikvision products at this level are equipped for use in areas with moderate

anti-corrosion demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles) away from coastlines, as well as areas affected by acid rain.

No specific protection

Hikvision products at this level are equipped for use in areas where no specific

anti-corrosion protection is needed.
